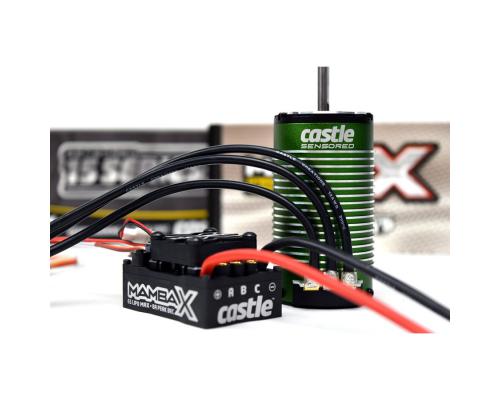

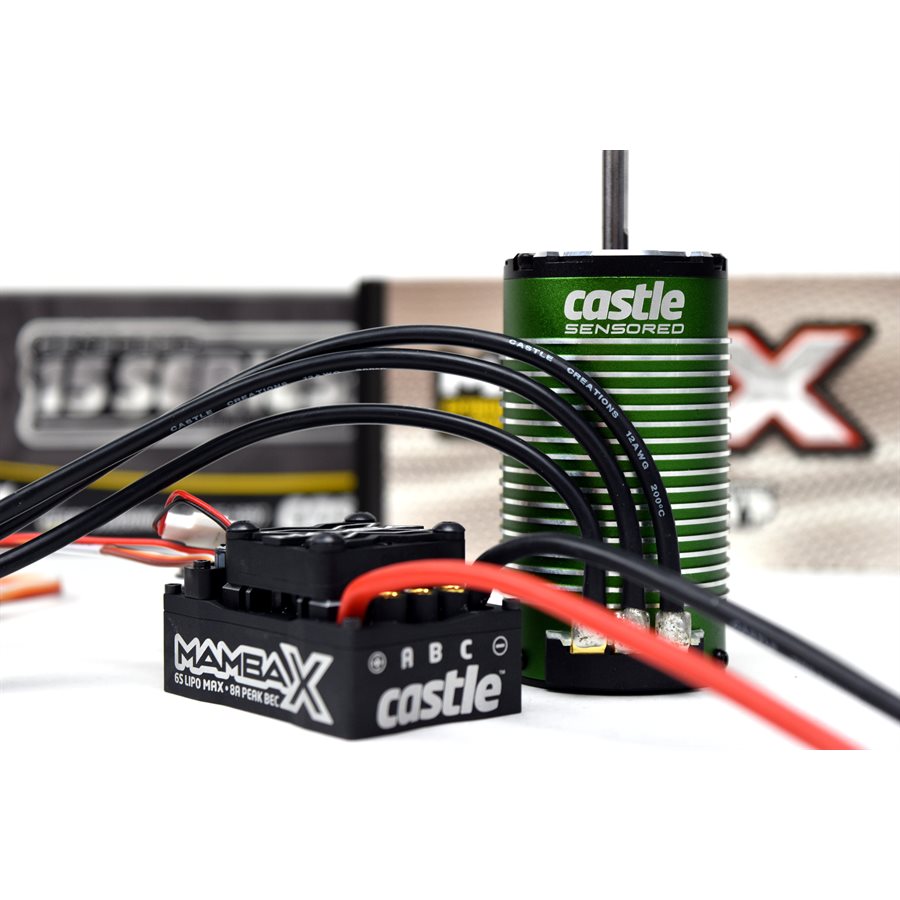

Mamba X ESC met 1515-2200KV Sensored 1:8 E-Buggy Edition
De Mamba X vertegenwoordigt het nieuwste en beste in Castle Creations Inc. ESC-technologie. Oorspronkelijk ontworpen om 1: 10-ste schaal buggy's en trucks te overmeesteren, heeft de ROAR GOEDGEKEURDE Mamba X ook geweldige racemogelijkheden voor eBuffy van de 1: 8-schaal. Na uitgebreid getest te zijn door Castle Creations 'Lead Mechanical Engineer en Team Driver, Taylor James - is de Mamba X goedgekeurd voor eBuggy-racen met twee van onze meest populaire 15-serie motoren.
Deze combo is een Mamba X ESC en 1515 1Y 2200kv motor voor lichtere 1 / 8e schaaltoepassingen. Normaal gesproken is deze motor gepaard met de 1/8 schaal Mamba Monster X ESC; maar als je wat moet sparen of een kleinere footprint nodig hebt, is de Mamba X meer dan in staat om deze motor te gebruiken. Deze opstelling wordt aanbevolen voor 3s of 4s gebruik in een voertuig met een gewicht van minder dan ~ 9lbs en afgestemd op niet meer dan ~ 45 MPH. Als je een zwaardere auto hebt, op zoek bent naar meer snelheid of gewoon de altijd liefhebbende snot uit je voertuig wilt slaan, raden we je aan om de Mamba Monster X-combo te pakken.
- Waterproof : Yes
- Telemetry Capable : Yes
- Data Logging : Yes
- Auxiliary Wire : Yes
- Minimum Input Voltage : 3S
- Maximum Input Voltage : 4S
- Sensored Capable : Yes
- Recon G6 Certified ESC : No
- ROAR Certified ESC : No
| Technical Specs |
| Input Voltage Range: |
MIN: 2S LiPo
MAX: 6S LiPo (25.2V) (Max 4s with included motor) |
| BEC Specifications: |
Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V |
| Operating Environment: |
Waterproof* design allows for use in nearly any environment. |
| Brake: |
Proportional |
| Reversible: |
Yes, but may be disabled for racing. |
| On/Off Switch: |
Yes |
| Cooling Fan: |
Yes, factory equipped (30mm), fully removable** (see Product Use Statements below) |
| Size: |
Length: 2.14" (54.4mm)
Width: 1.39" (35.2mm)
Height: 1.18" (30.0mm) |
| Weight (with wires): |
3.56 oz. (101g) |
| Connectors: |
4.0mm female bullets for motor connection. |
| Items Needed for Operation: |
Battery Connector required, Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs are recommended. |
| Product Use Statements: |
*Although Mamba X is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. While the motor and controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind.
**The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
|
| Application Guidelines: |
Intended for up to 4s (25.2 Volt) operation in vehicles weighing less than 9bs/4kg with 1515 - 2200kv motor. SW VS. 1.82 ROAR APPROVED |
| Max. Recommended Vehicle Weight: |
Less than 9bs/4kg, with batteries, ready-to-run. |
| Programmability: |
Fully programmable Castle feature set using Castle Link USB adapter (coupon for free link included in package) and freely downloadable Castle Link Windows software. |
| Telemetry Link Capable: |
Yes |
| Tech Notes: |
- Mamba X setups frequently hit 100+ amps in peaks and not all LiPos are created equal. Surge ratings should never be used to determine a pack's suitability for a brushless application. Recommended battery capacity for 1:10th and 1:8th scale vehicles is 5000mAh. We recommend using 30C continuous discharge or higher LiPo batteries (or high quality 25C batteries such as Traxxas® Power Cell).
- Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups.
- Applying voltages higher than 25.2V will cause irreparable damage to ESC.
- We recommend a high-current connector designed for high-powered electric systems, rated for 70+ amps. Invest in connector sets made for high-powered electric systems such as our Castle 6.5mm Polarized Connectors, Castle 4.0mm Polarized Connectors, Traxxas® Power Connectors, or Deans® Ultra Plugs
|
| Motor |
| Input Voltage Range: |
3-6S LiPo; 4s maximum with Mamba X ESC |
| Kv: |
2200 |
| Max. RPM: |
60,000 |
| Size: |
Length: 75.4mm
Diameter: 40mm (41.4mm with fins) |
| Weight (w/wires): |
429g / 15.1oz |
| Shaft Size: |
Length: 20mm
Diameter: 5mm |
| Mounting Hole Specifications: |
M3 and M4 @ 25mm |
| Cooling Fan: |
Optional, coming soon! |
| Connectors: |
4mm male Castle Bullet Connectors on 12AWG wire, includes 210mm length sensor wire. |
| Application Guidelines: |
Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9lbs on 4s LiPo. |
| Max. Recommended Vehicle Weight: |
See application guidelines |
| Tech Notes: |
Running modes: SMARTSENSE™, Sensored only
Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
|
