De geheel nieuwe SIDEWINDER 4 ™ bouwt voort op het populairste platform van Castle, de SIDEWINDER 1:10 SCALE SERIE, en is de eerste in zijn soort die de nieuwste CRYO-DRIVE ™ -technologie van Castle uitrunt. CRYO-DRIVE ™ combineert technologie uit geavanceerde hardware- en softwarevooruitgangen om de thermische prestaties te verbeteren. COOLER TEMPS betekenen LANGERE UITVOERING en MEER VERMOGEN in uw SIDEWINDER 4-opstelling.
Extra functies:
2s - 3s LiPo; 6 - 8 cellen NiMH-gebruik in voertuigen van 6,5 lbs met accu, klaar voor gebruik.
Sensorless borstelloze en / of geborstelde motorwerking.
Waterdicht ontwerp ESC en spatwaterdichte 30MM-fan *
5.0 volt vast, 2 ampère Piek BEC
Hoorbare waarschuwingen voor foutcondities
Verbeterde remfunctie voor slepen
Soepeler startups zonder sensor
Handige zenderprogrammering voor zes gemeenschappelijke instelbare instellingen
Extra instellingen en software-updates beschikbaar via Windows®-gebaseerde Castle Link-software en USB-adapter (afzonderlijk verkrijgbaar) of via Field Link-kaart (apart verkrijgbaar)
Telemetry Link compatibel voor Futaba® S.BUS2 (apart verkrijgbaar)
De SIDEWINDER 4 is een veelzijdige ESC en wordt geaccepteerd in een breed scala aan toepassingen. Of je nu vuil weggooit, door een hoek scheurt of gestaag de paden domineert, wij hebben jou gedekt!

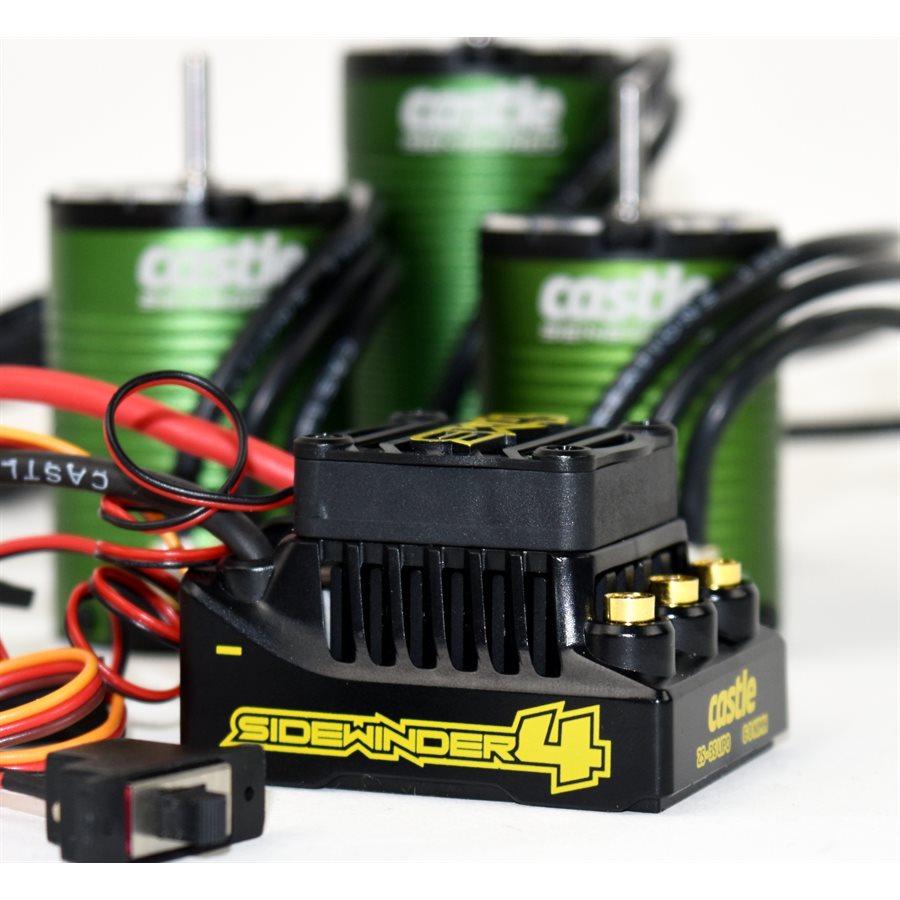

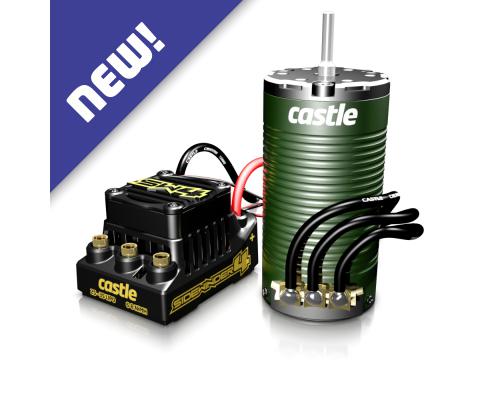

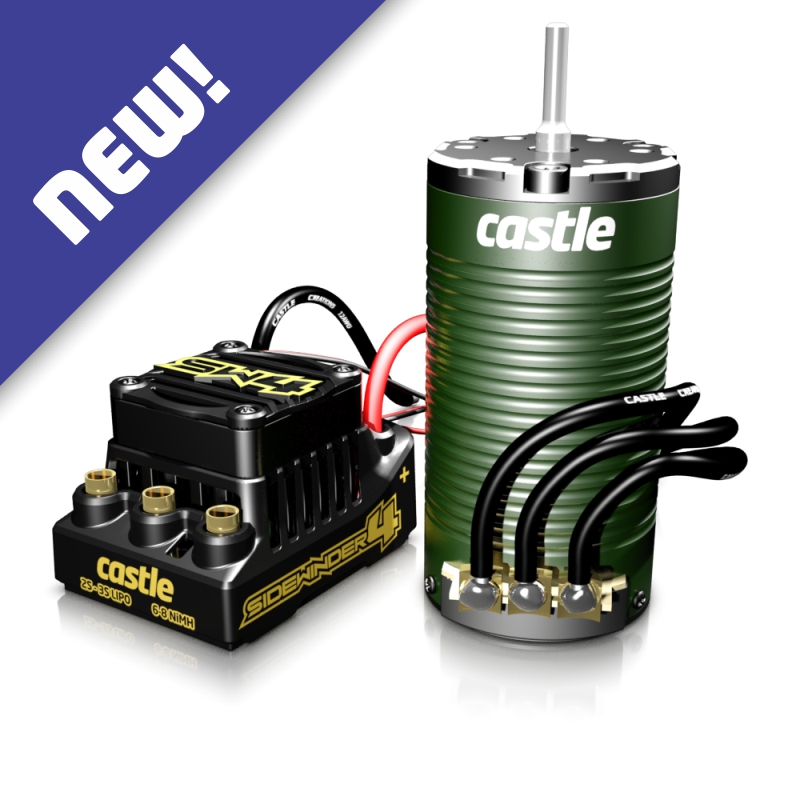

Deze combo bevat een Sidewinder 4 ESC en een 1415-2400Kv sensor * motor. De 1415-2400kv is ideaal voor trucks met een korte koers die worden uitgevoerd op 3s LiPo en een gewicht tot 6,5 lbs; het kan op een 2s LiPo worden uitgevoerd maar zal erg traag zijn. Het is een koelspannend koppelendier voor lichtere 1 / 10e schaal 2WD stadion vrachtwagens en buggy's die op een 3s LiPo rijden.
Waterdicht: Ja
Telemetrie in staat: Ja
Datalogging: Nee
Extra draad: Nee
Minimale ingangsspanning: 2S
Maximale ingangsspanning: 3S
Sensored Capable: Nee
Recon G6 Certified ESC: Nee
ROAR Gecertificeerd ESC: Nee

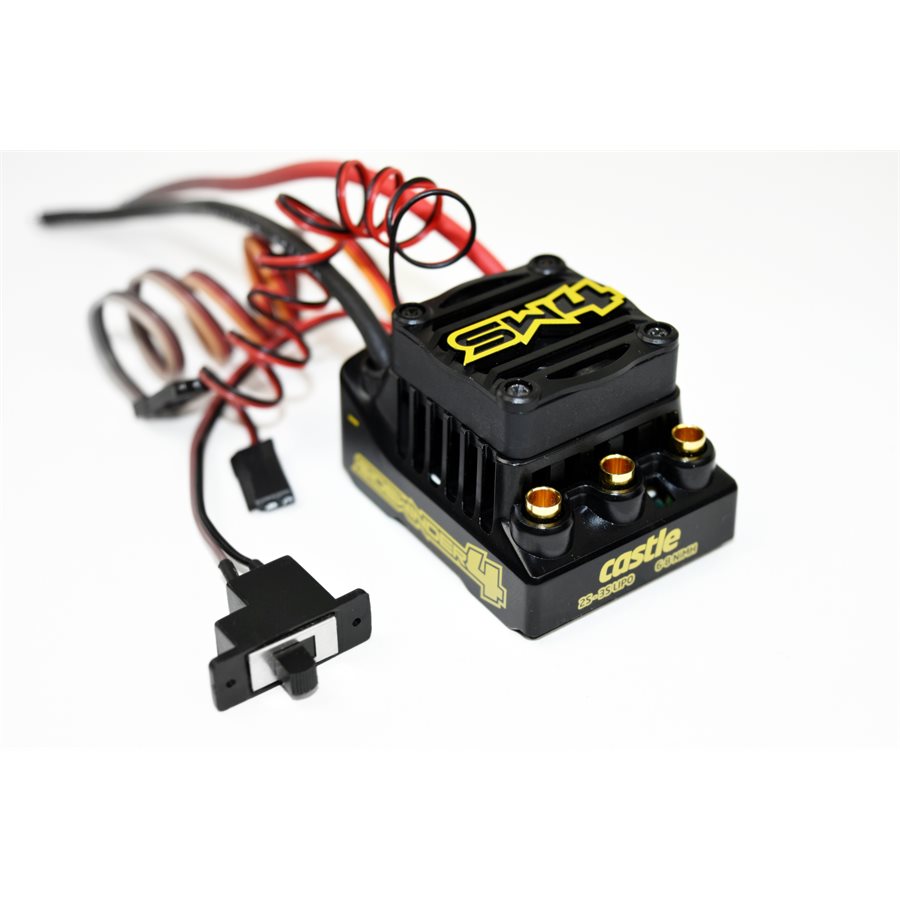

| Technical Specs |
| Input Voltage Range: |
2s - 3s LiPo; 6 - 8 cell NiMH |
| BEC Specifications: |
5.0 volts fixed, 2 amps. |
| Operating Environment: |
Waterproof* design allows for use in nearly any environment |
| Brake: |
Proportional |
| Reversible: |
Yes, but may be disabled for racing. |
| On/Off Switch: |
Yes |
| Cooling Fan: |
30mm fan included |
| ESC Size: |
L: 2.08" (52.92mm)
W: 1.50" (38.05mm)
H: 1.28" (32.56mm) |
| ESC Weight (w/wires): |
2.26 oz. (64 g) |
| Connectors: |
4mm female bullets for motor connection. |
| Items Needed for Operation: |
Battery Connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended. |
| Product Use Statements: |
*Although Sidewinder 4 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind. |
| Application Guidelines: |
The 1415-2400kv is ideal for short course trucks running on 3s LiPo and weighing up to 6.5 lbs; it can be run on a 2s LiPo but will be very slow. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running on a 3s LiPo.
Please refer to our Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market. |
| Recommended Motors: |
Combo includes 1415-2400kv brushless motor. |
| Max. Recommended Vehicle Weight: |
No more than 6.5lbs with battery, ready-to-run. |
| Programmability: |
Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software. |
| Telemetry Link Capable: |
No |
| Tech Notes: |
Not all LiPos are created equal, and surge ratings should never be used to determine a pack’s suitability for a brushless application. Use the CONTINUOUS C rating only. Brushless setups frequently hit 100+ amps in peaks. We strongly suggest using 5,000 mAh or larger LiPo cells with a discharge rating of at least 30C (or high quality 25C batteries such as Traxxas® Power Cells®). Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups. |

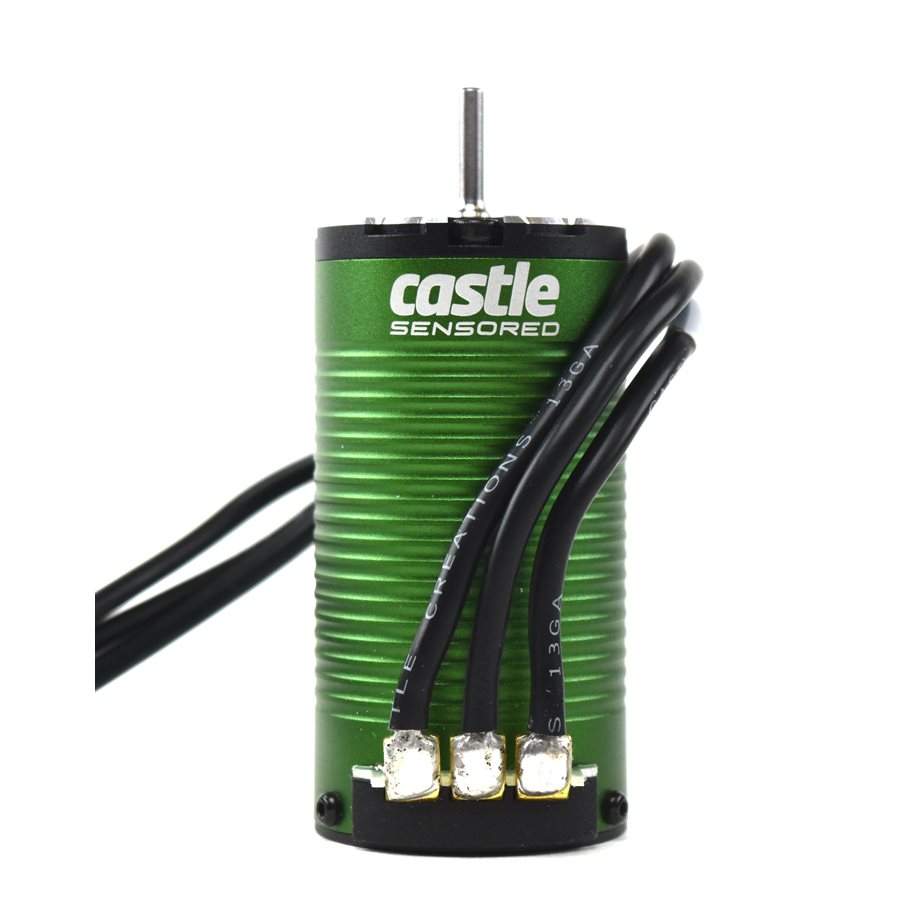

| Motor Technical Specs |
| Input Voltage Range: |
2-3S LiPo |
| Kv: |
2400 |
| Max. RPM: |
75,000 |
| Size: |
Length: 69.5mm
Diameter: 36mm |
| Weight (w/wires): |
318g/ 11.2oz |
| Shaft Size: |
Length: 15.5mm
Diameter: 1/8" (3.17mm) |
| Mounting Hole Specifications: |
M3 @ 25mm |
| Cooling Fan: |
Optional- Coming Soon! |
| Connectors: |
4mm male Castle Bullet Connectors |
| Application Guidelines: |
For short course trucks running on 3s LiPo and weighing up to 6.5 lbs; it can be run on a 2s LiPo but will be very slow.
It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running on a 3s LiPo.
Please refer to our Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market. |
| Max. Recommended Vehicle Weight: |
6.5lbs |
| Tech Notes: |
Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
Water Resistant Design: Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
|
